7.7.4.1.2 GMP3 Ingenico wired integration and counter payment

This lesson covers counter payments with an Ingenico device on the GMP3 (wired) path. Complete license and department steps first.

After purchasing the license, you must pay a one-time integration setup fee to Ritapos. After payment, our technical team will contact you for installation. To speed up the process, you can send your integration request from Ritapos. In the left menu, open "Destek talepleri" (Support requests) under "Yardım & Destek" (Help & Support) and press the "+" button. In the "Yeni destek talebi" (New support request) form, enter your contact details, choose "Yazarkasa entegrasyonu" (cash register integration) as the subject, write a description and your AnyDesk workspace number, then press "Kaydet" (Save).

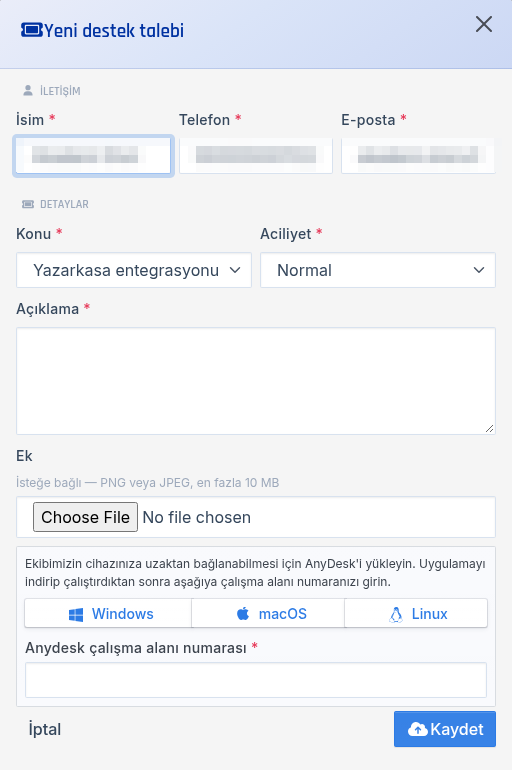

Yeni destek talebi (New support request) form with contact, subject, urgency, description, attachment and AnyDesk workspace number fields

During the integration, an app named "Ritapos x Worldline" is installed on your computer. Orders you take in Ritapos are then sent automatically to your Ingenico device connected by cable.

The Ingenico wired connection looks like this:

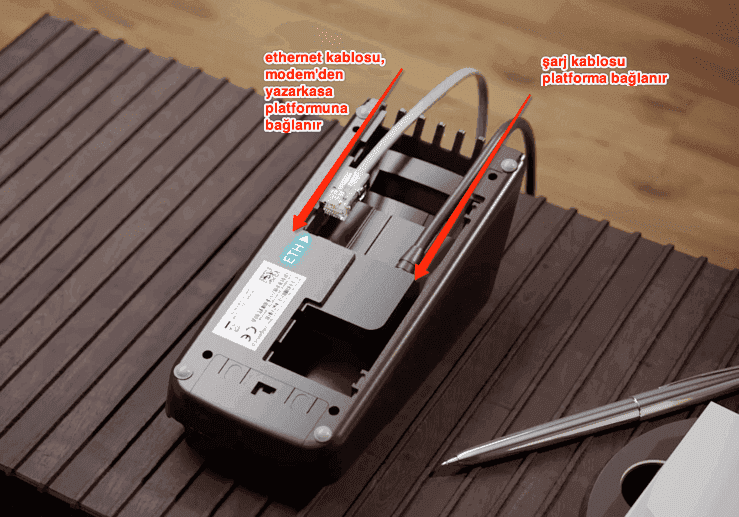

Underside of the cash register platform with arrows to the Ethernet cable in the ETH port and the charging cable

After the cabling is done, open the "CASH REGISTER POS SETTINGS" menu on the device, tap Ethernet in the "CONNECTION SETTINGS" section and set a static IP address.

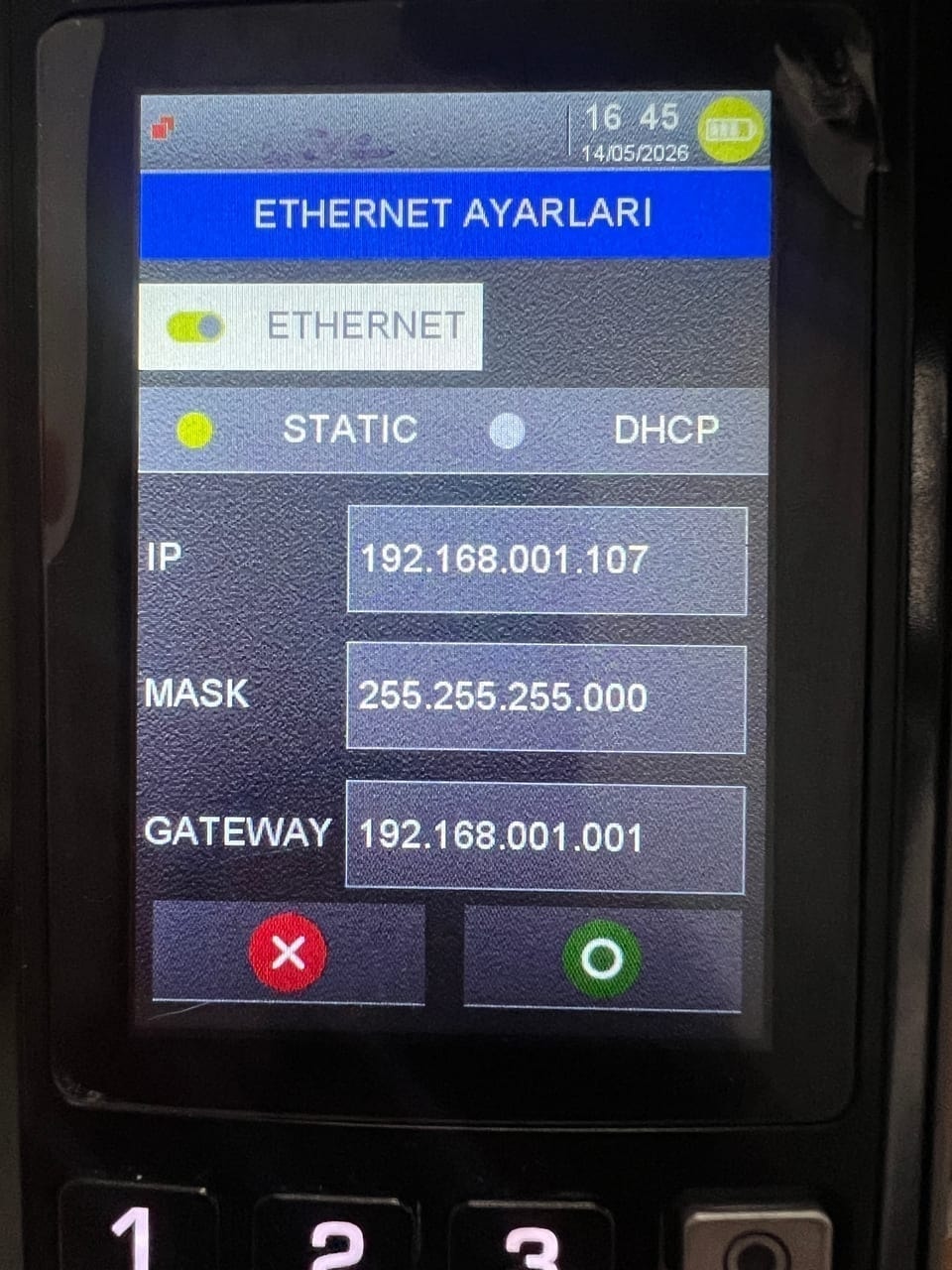

Ingenico device screen with Ethernet settings: static IP, mask and gateway

Next, edit the GMP.xml file in the "ritapos-worldline-bridge\dist\dlls\Windows\x64" folder. Set the IP address, usually found in the first interface, to the IP address of the device.

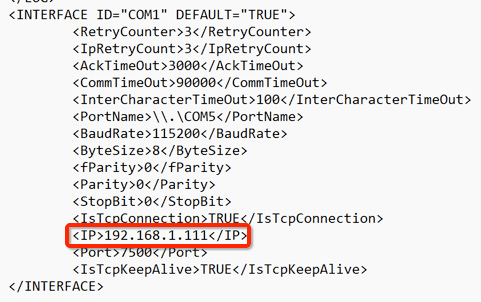

GMP.xml file with the IP line in the first INTERFACE block boxed in red

If payments feel slow with the integration, you can set LogPrintToFileOpen to FALSE.

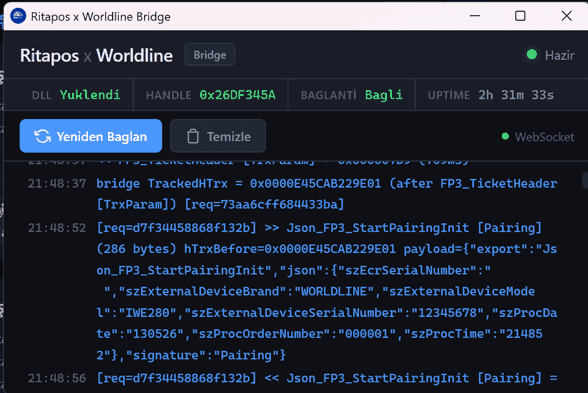

Ritapos x Worldline Bridge window showing DLL Yuklendi, BAGLANTI Bagli and the activity log

Run the application.

Now, after you take an order:

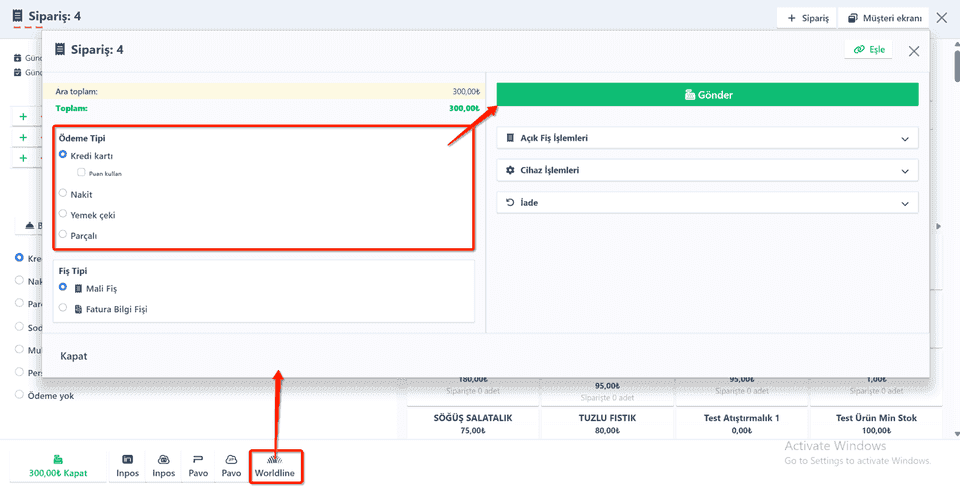

Worldline payment window with the Ödeme Tipi options and the Gönder button marked, and the Worldline button in the bottom bar

Press the "Worldline" button on the order card to open the payment window. Choose the payment method and press "Send" to send the payment to your cash register right away.

If the device needs to be paired, press the "Pair" button at the top right.

To take a partial payment on the cash register:

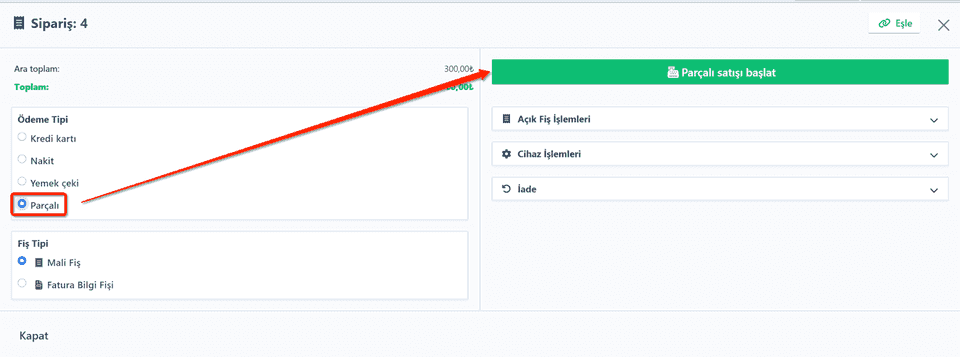

Worldline payment window with Parçalı selected and an arrow to the Parçalı satışı başlat button

Choose "Partial" as the payment type and press "Start partial sale". Once the sale starts, Ritapos shows fields where you can enter the amount and choose the payment type.

If the device restarts, runs out of paper or loses its internet connection during a sale, you can continue from the "Open Receipt Transactions" card.
