7.7.9. Inpos Cash Register Integration

For trade summary and comparison of GMP3/TSM Inpos integrated POS system page for all brands cash register POS integration systems see page.

You can operate your Ritapos and Inpos cash registers integrated with the GMP3 and TSM features, either wired or wireless. GMP3 wired in self-service restaurants; You can use it with TSM in businesses that accept payment at the table.

In order to integrate, a 1-year integration license must first be obtained. Click here to get the integration license.

The Inpos team will define a license for your device within 24 hours. Then, log in as an administrator from Inpos and get the Z report from the reports menu;

Go to the Integrations page from the Settings button.

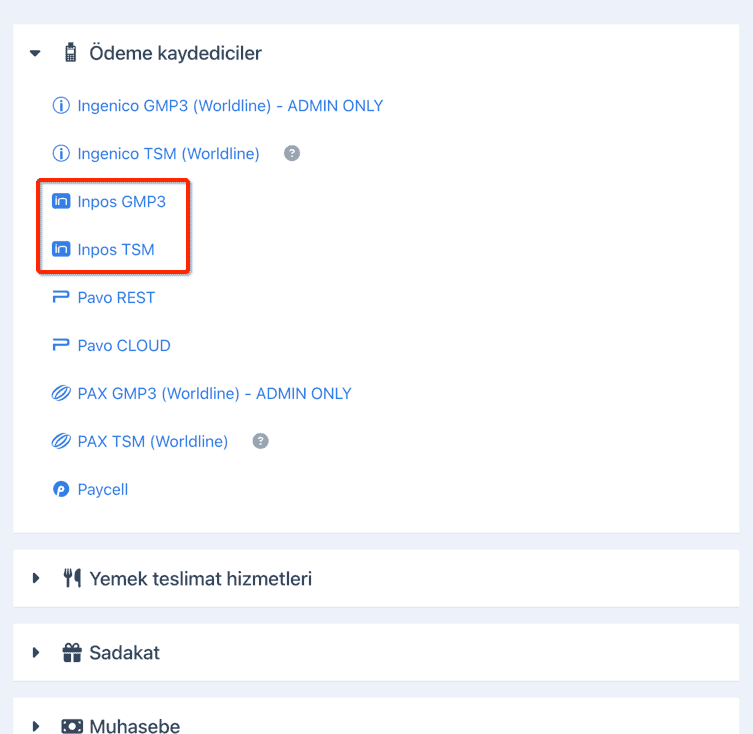

On the Integrations page, the relevant forms are opened from the Payment recorders tab.

7.7.9.1. Inpos GMP3

GMP3 integration cannot be made on devices without an external ECU card. Click to purchase an external ECU card.

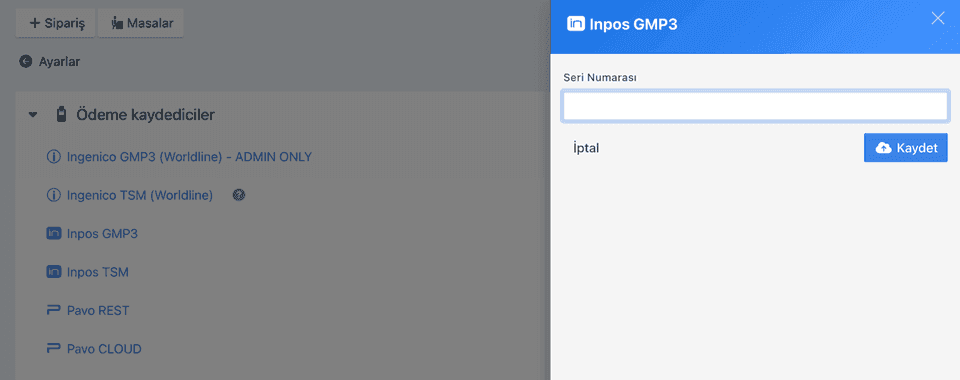

Inpos If GMP3 is selected, the device serial number will appear in the opened form.

is entered. Then, Inpos is wired to the same network as the computer and the charging cable is plugged in. Inpos GMP3 only works when connected to electricity.

The computer is given a static IP and "Inpos Device Pairing" program is run. In this program;

Relevant information is entered as in the image. "19035" must be entered in the Application No field. Then press "Pair" without being pressed wait and enter the service menu of the Inpos device.

To go to the service menu;

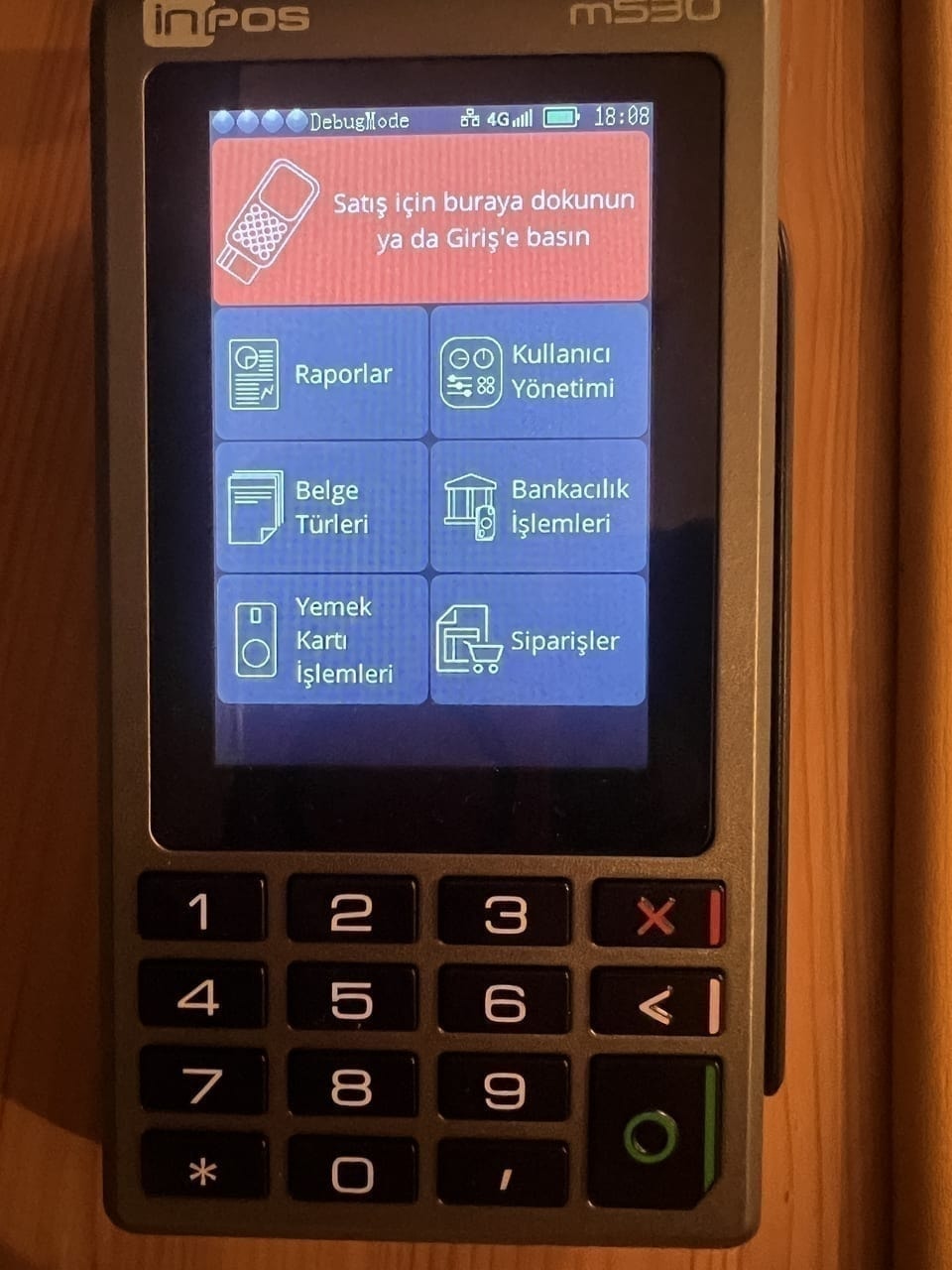

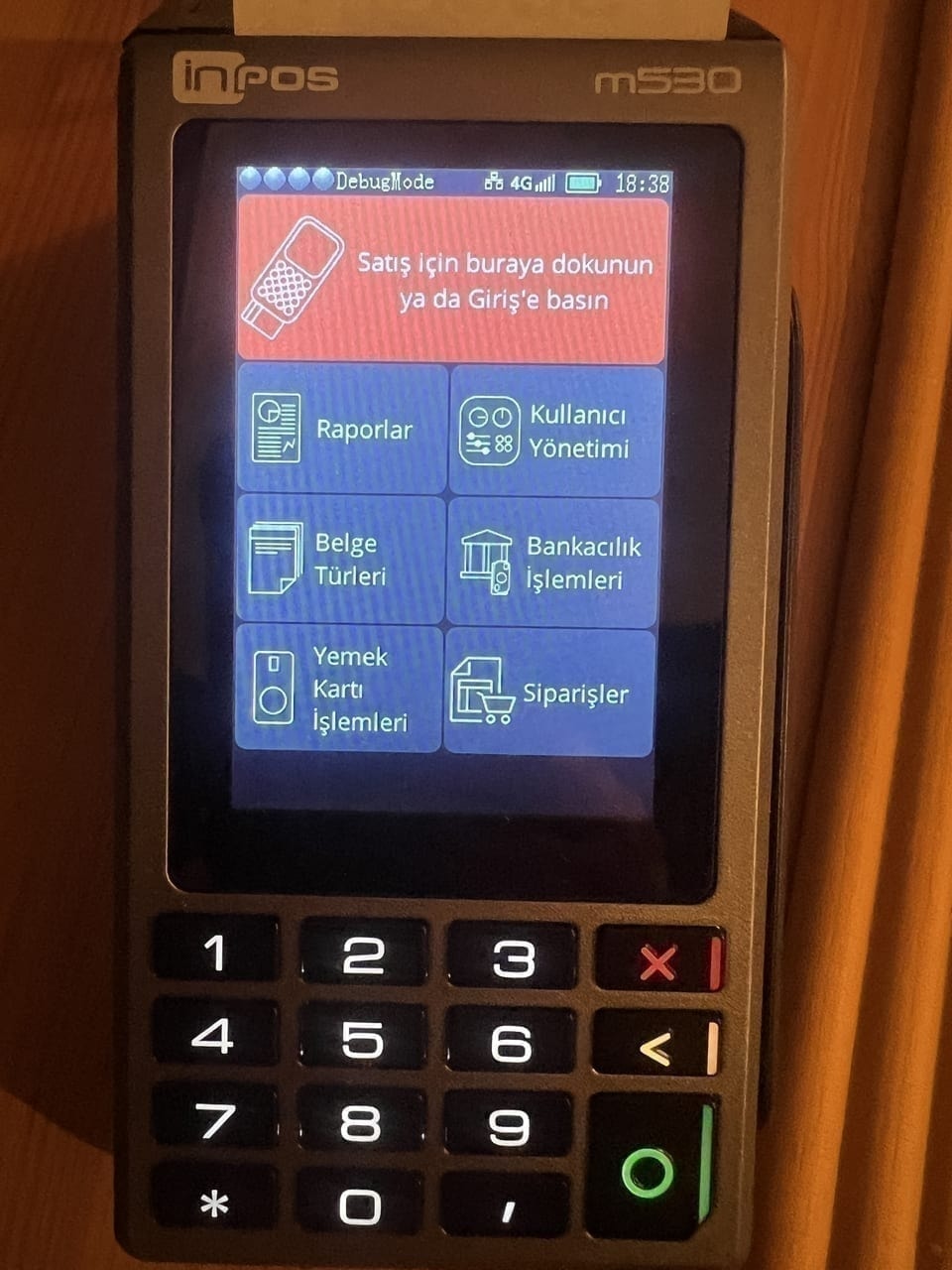

Press the "X" key on the sales screen. You can go to the top menu by selecting "Exit" from the buttons that appear on the screen.

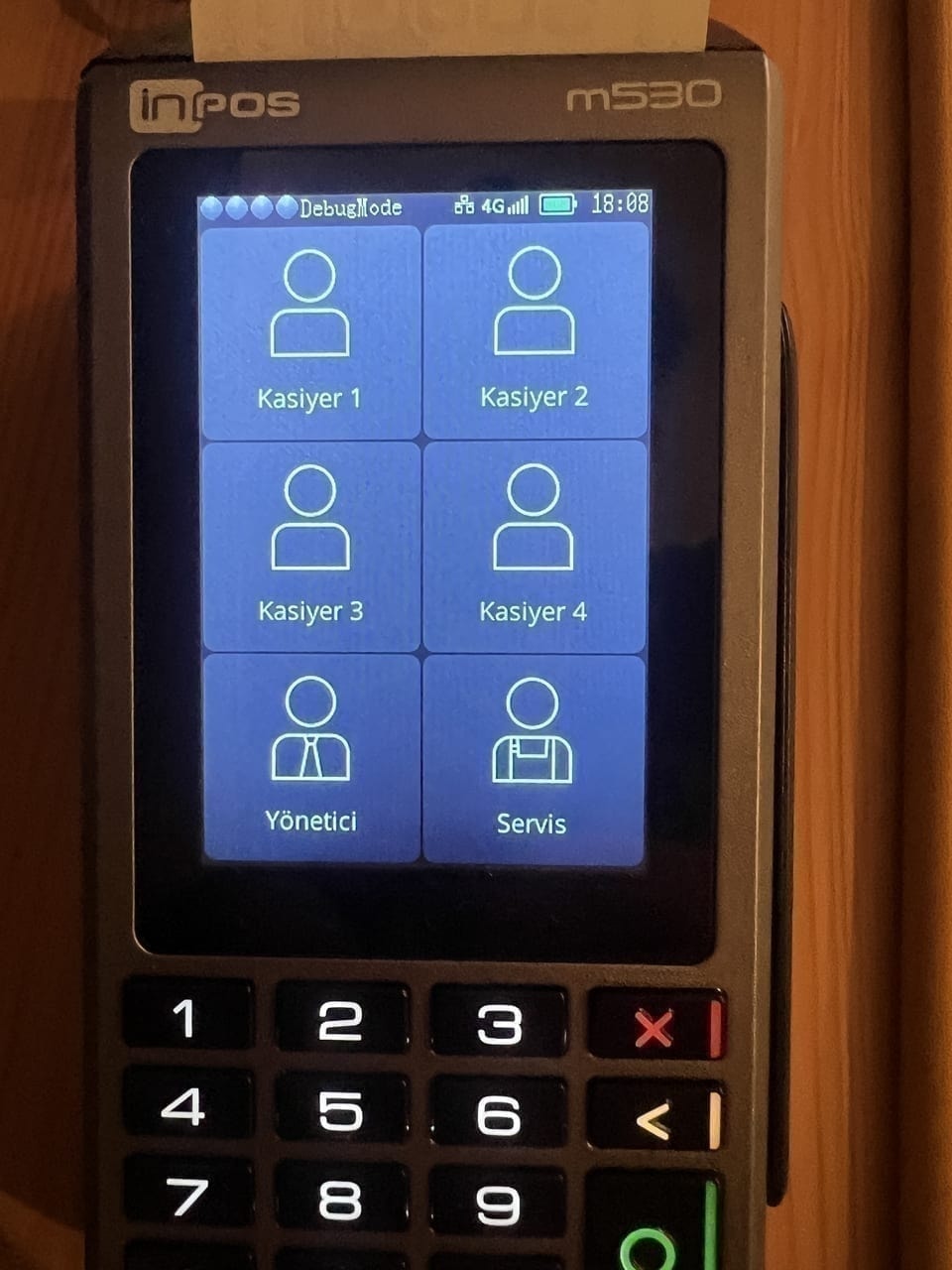

From here, the "Service" user is selected and logged in with the "password received from the Ritapos team" according to the session id that changes on the screen that appears.

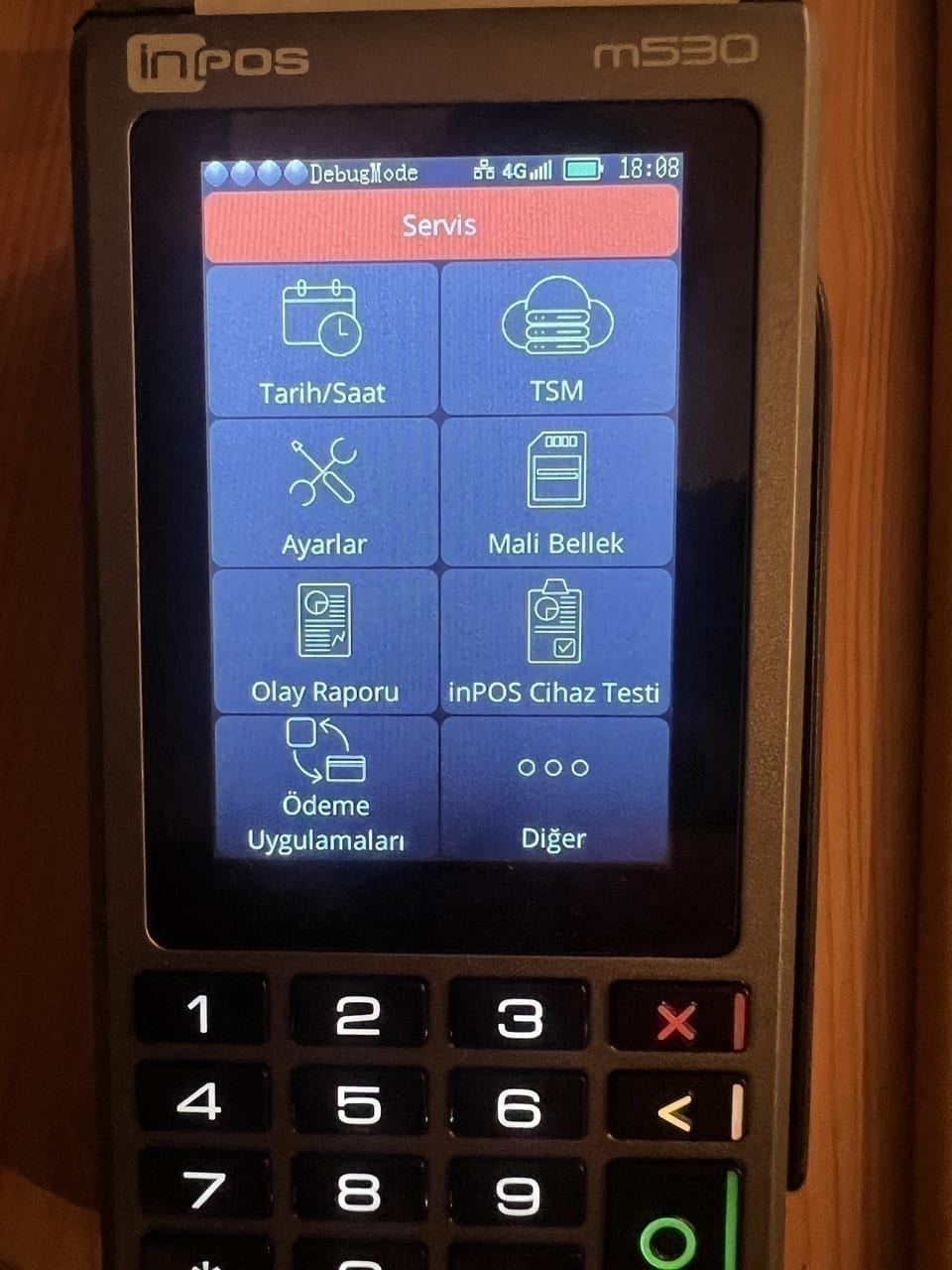

Press the "Other" button from the menu that opens.

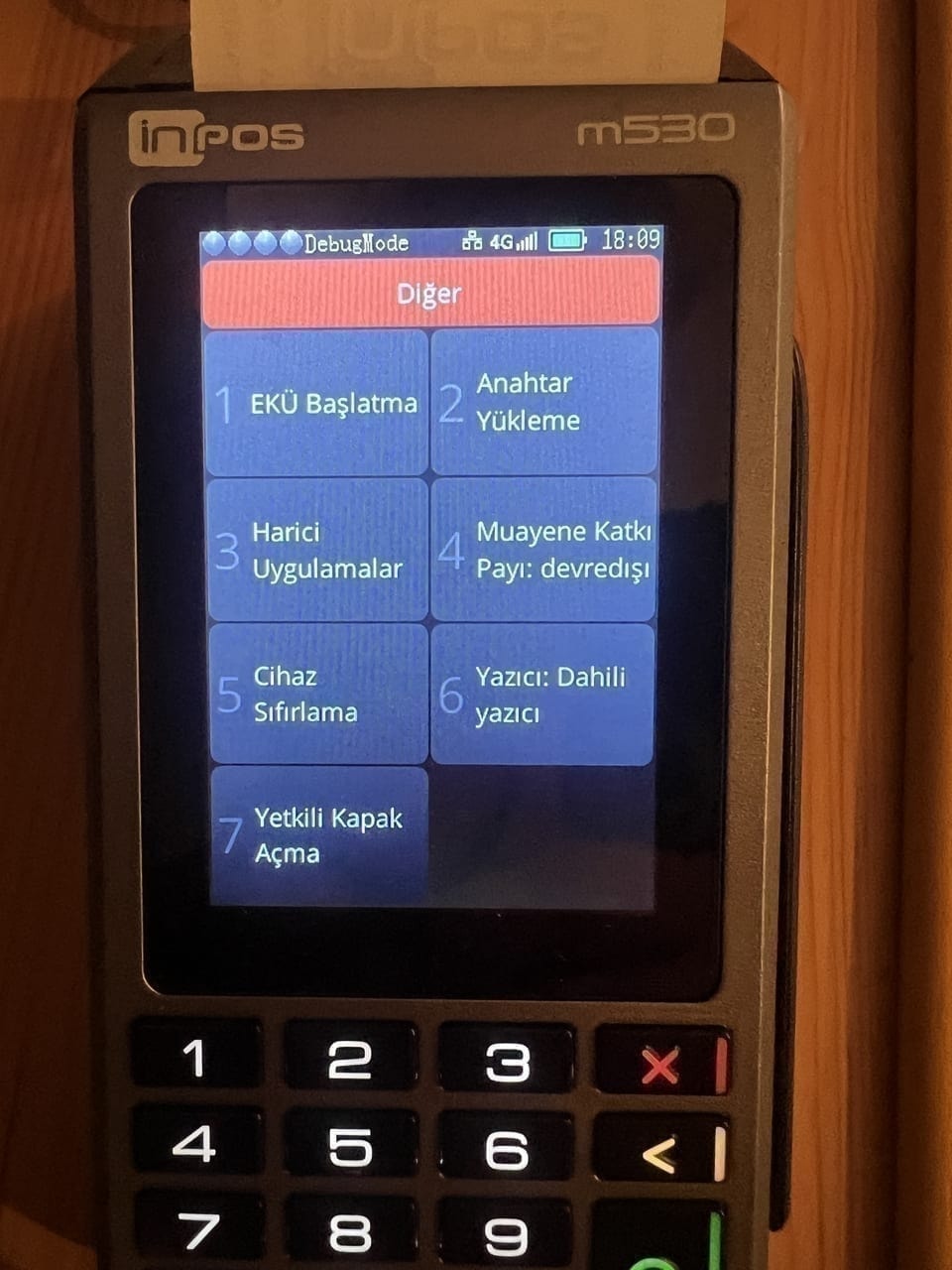

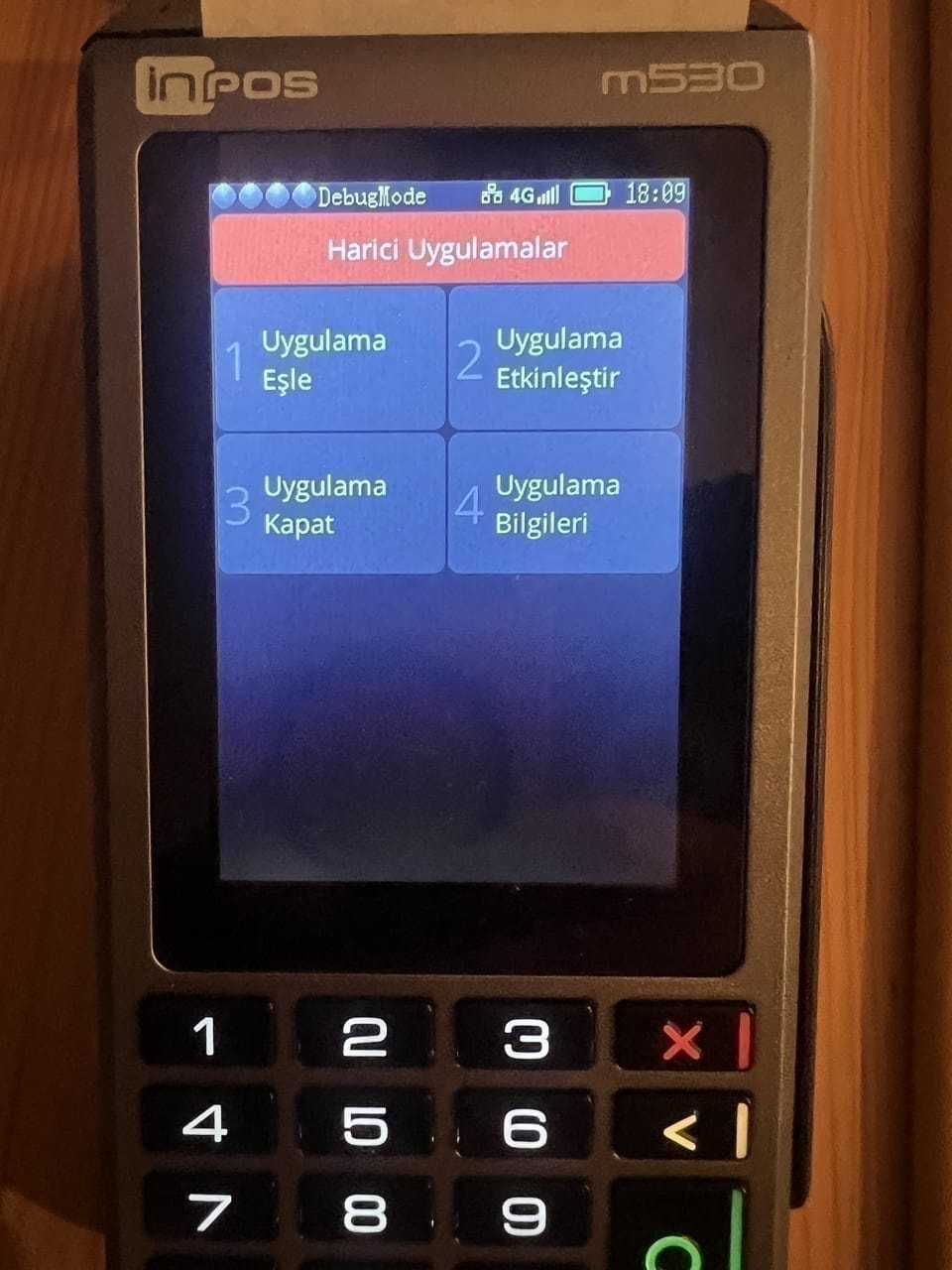

"External Applications" is selected.

Press the "Application Pair" button and type "19035" into the resulting screen and press the green button, then enter the IP address and PORT of the computer (IP and PORT information can be obtained from the pairing software). The green "o" key is also pressed on Inpos. When the pairing is completed, a success message appears on the screen. Likewise, the success message is displayed under the "Inpos Device Pairing" application. Then log out from the "Service" user in Inpos and

You can check in with the cashier. The cashier password is "1234".

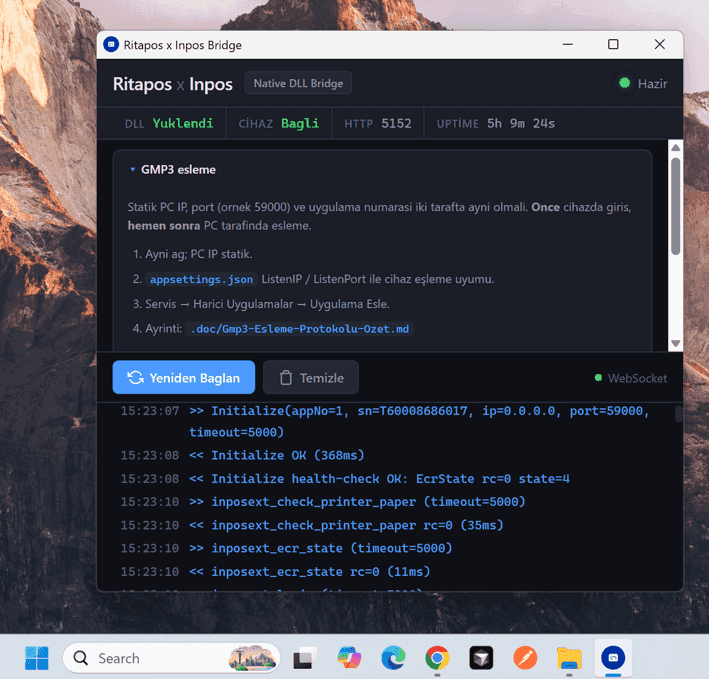

Behind "Ritapos x Inpos" The appsettings.json settings of the application are made and the application is run.

This application enables data communication between Ritapos and Inpos and must be turned on throughout the integration.

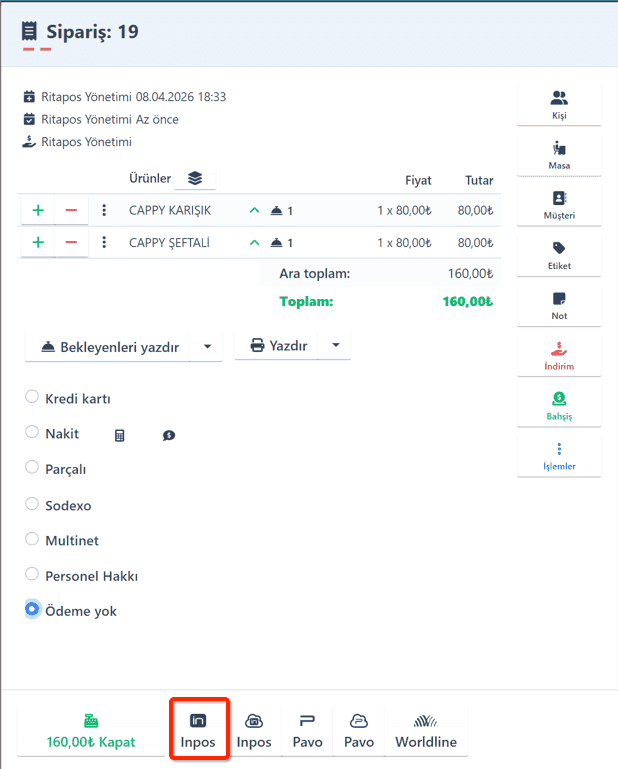

When all operations are completed, the "Inpos" button will appear on the "Order Screen" in Ritapos.

When you press the "Inpos" key;

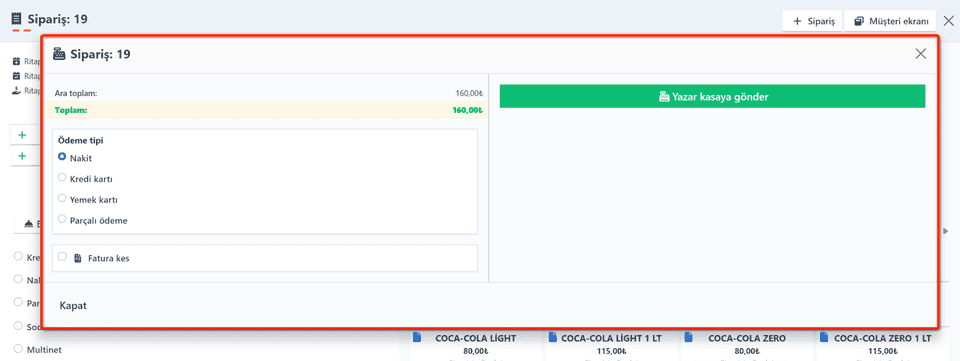

The integration screen opens and you can manage your payments here. You can easily invoice your customers who request an invoice by selecting the "Invoice" option next to the "Information slip".

7.7.9.2. Inpos TSM

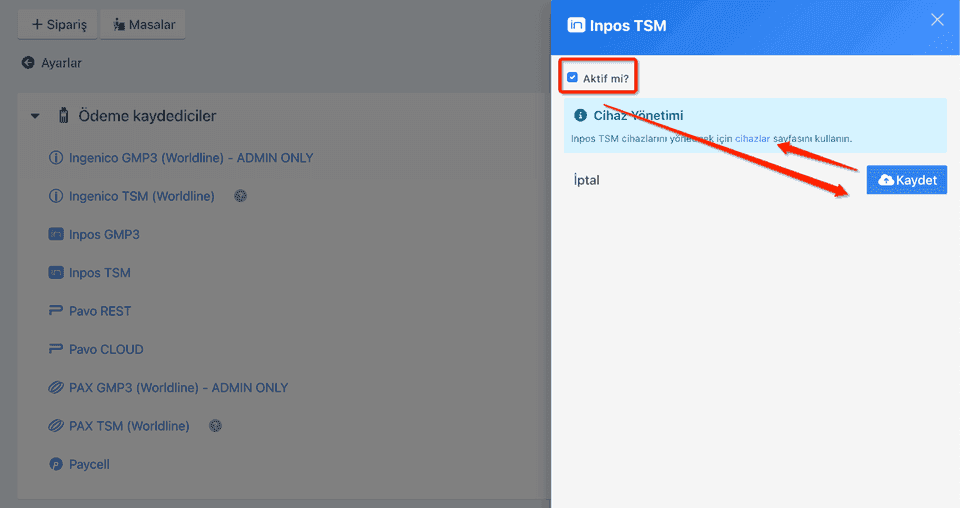

First, the integration is activated and the "Save" button is pressed. then press the "Devices" button and

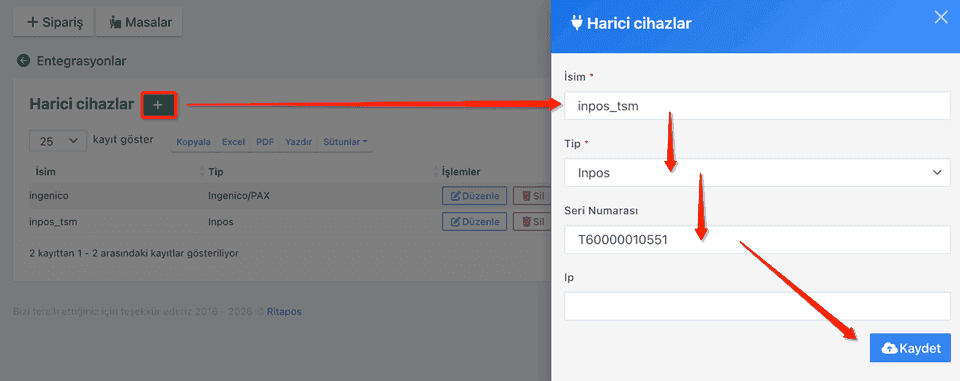

A name for the device is entered in the form that opens by pressing the "+" button. "Inpos" is selected as the type, the device serial number is entered in the relevant field and the "Save" button is pressed. Integration can be done from the sales screen on Inpos. For this;

Cashier login is made on Inpos. The cashier password is "1234".

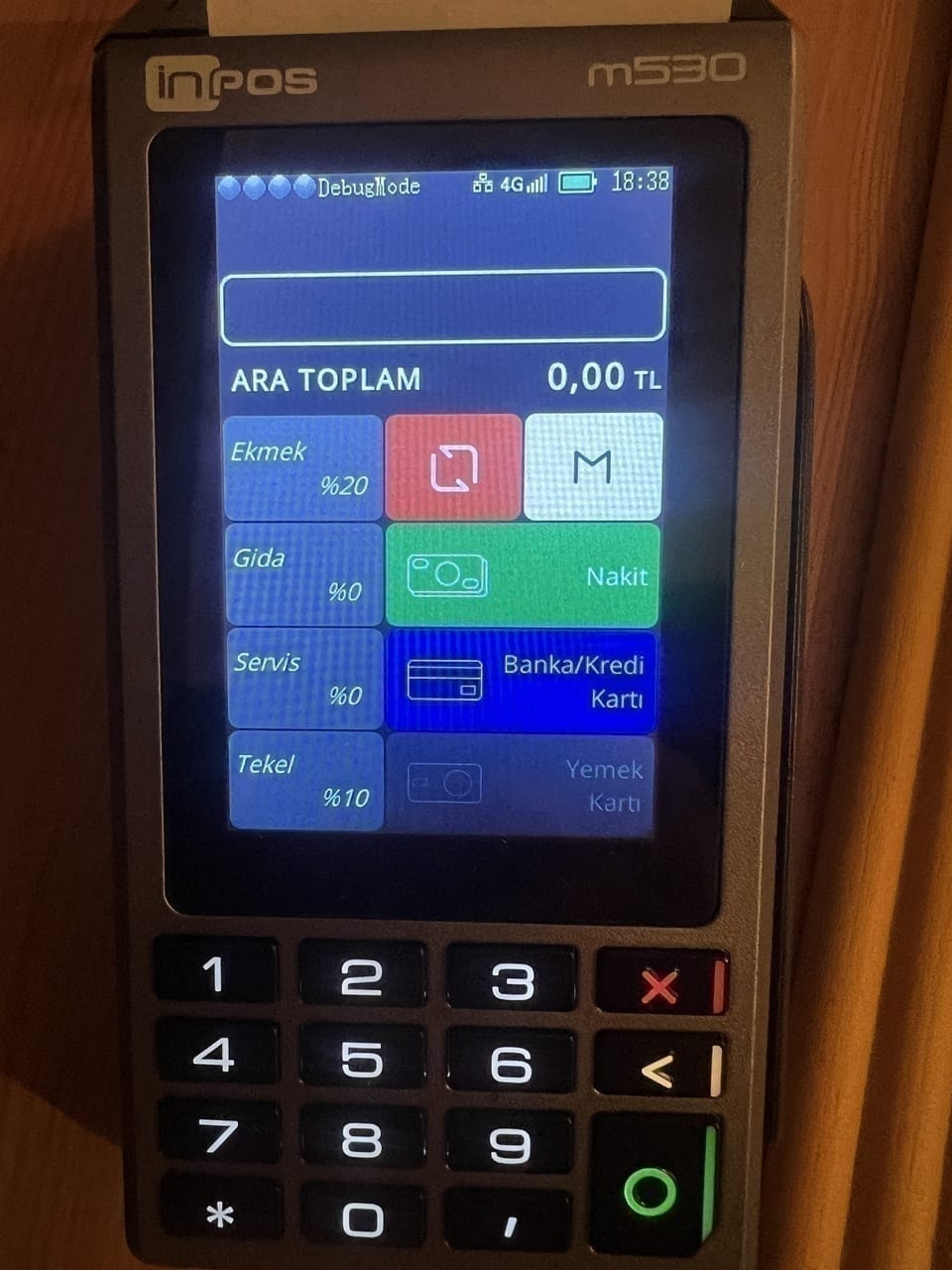

On the sales screen, the red "x" button is pressed. Behind;

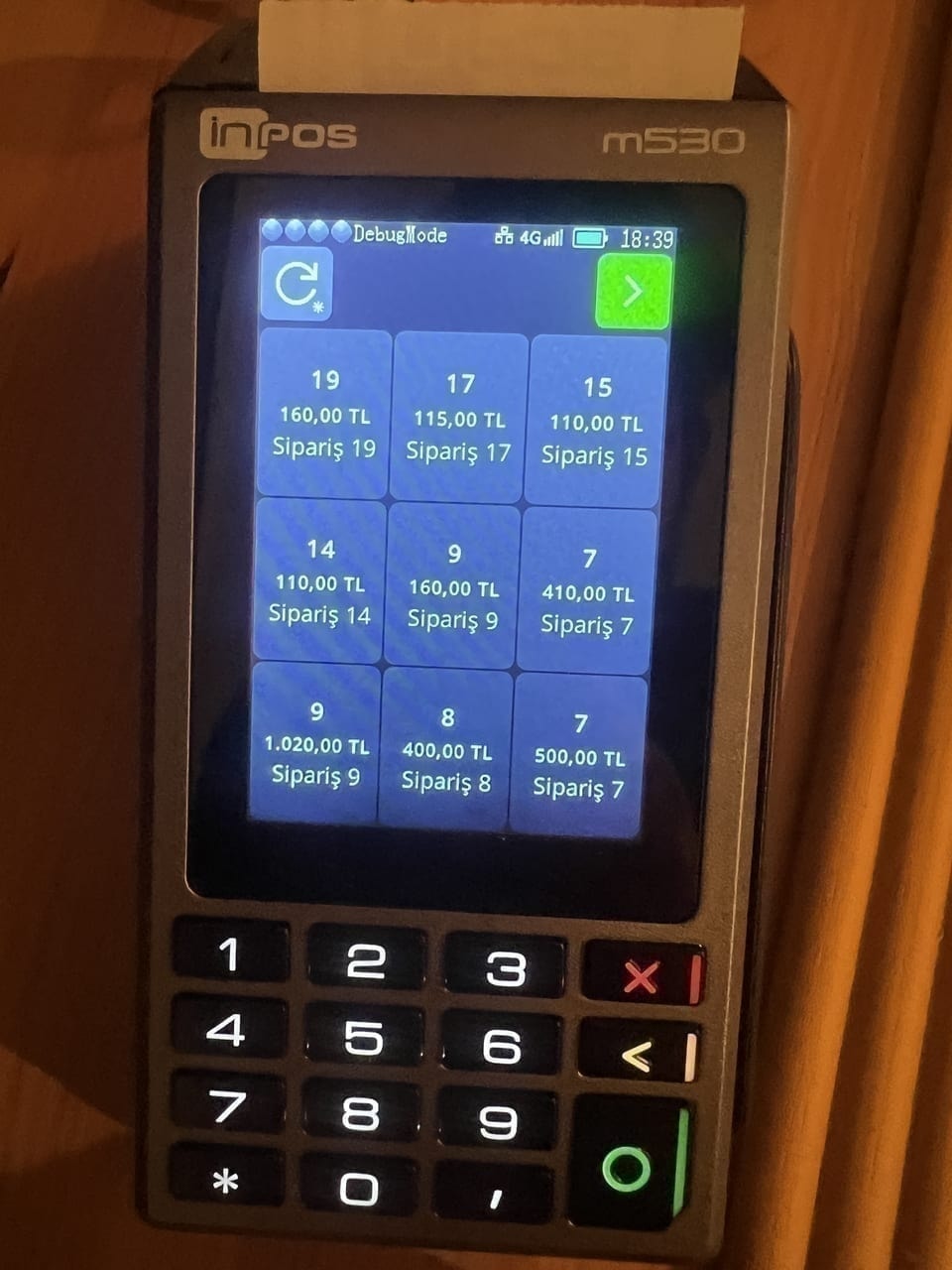

Press the "Orders" button at the bottom right. If desired, the order number can be entered here. If desired, all orders in Ritapos can be listed by pressing the green "o" button.

The order to be paid for is selected and payment is received via Inpos. Partial payment is also taken through Inpos. All payment information is sent to GIB and Ritapos. The order is automatically closed from Ritapos.
